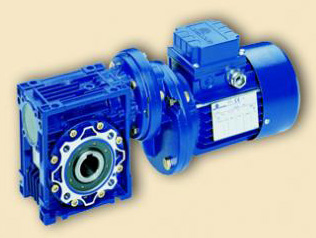

Мощности подключаемых к червячным мотор-редукторам PCRV электродвигателей 0,37 - 0,75 кВт
На мотор редукторы PCRV устанавливаются различной мощности электродвигатели. Техническая информация представлена в соответствующих таблицах.
| Мощность двигателя, кВт | Частота вращения выходного вала, об/мин | Крутящий момент, Нм | Сервис-фактор | Передаточное число | Тип мотор-редуктора | Двигатель IEC | Радиальная нагрузка, Н |
|---|---|---|---|---|---|---|---|
| 0,37 | 18.7 | 134 | 1.2 | 75 | PC071+NMRV063 | 71B4 | 5083 |
| 15.6 | 148 | 1.4 | 90 | 5401 | |||
| 11.7 | 185 | 1.0 | 120 | 5945 | |||
| 9.3 | 212 | 0.8 | 150 | 6270 | |||
| 18.7 | 138 | 1.8 | 75 | PC071+NMRV075 | 71B4 | 6000 | |
| 15.6 | 154 | 1.9 | 90 | 6375 | |||
| 11.7 | 191 | 1.5 | 120 | 7017 | |||
| 9.3 | 223 | 1.1 | 150 | 7380 | |||
| 7.8 | 254 | 0.9 | 180 | 7380 | |||
| 12.0 | 206 | 1.6 | 75 | PC080+NMRV075 | 80A6 | 6952 | |
| 10.0 | 230 | 1.7 | 90 | 7380 | |||
| 7.5 | 283 | 1.3 | 120 | 7380 | |||
| 6.0 | 324 | 1.0 | 150 | 7380 | |||
| 7.8 | 268 | 1.5 | 180 | PC071+NMRV090 | 71B4 | 8180 | |
| 5.8 | 321 | 1.1 | 240 | 8180 | |||
| 4.7 | 371 | 0.9 | 300 | 8180 | |||
| 6.0 | 347 | 1.6 | 150 | PC080+NMRV090 | 80A6 | 8180 | |
| 5.0 | 389 | 1.3 | 180 | 8180 | |||
| 3.8 | 471 | 1.0 | 240 | 8180 | |||
| 3.8 | 509 | 1.5 | 240 | PC080+NMRV105 | 80A6 | 10320 | |
| 3.0 | 577 | 1.2 | 300 | 10320 | |||
| 3.8 | 509 | 1.6 | 240 | PC080+NMRV110 | 80A6 | 10320 | |
| 3.0 | 577 | 1.3 | 300 | 10320 | |||
| 0,55 | 18.7 | 200 | 0.8 | 75 | PC071+NMRV063 | 80A4 | 5083 |
| 15.6 | 219 | 0.9 | 90 | 5401 | |||
| 18.7 | 205 | 1.2 | 75 | PC071+NMRV075 | 80A4 | 6000 | |
| 15.6 | 230 | 1.3 | 90 | 6375 | |||
| 11.7 | 284 | 1.0 | 120 | 7017 | |||
| 18.7 | 205 | 1.2 | 75 | PC080+NMRV075 | 80A4 | 6000 | |
| 15.6 | 230 | 1.3 | 90 | 6375 | |||
| 11.7 | 284 | 1.0 | 120 | 7017 | |||
| 9.3 | 332 | 0.8 | 150 | 7380 | |||
| 12.0 | 306 | 1.1 | 75 | PC080+NMRV075 | 80B6 | 6952 | |
| 10.0 | 341 | 1.1 | 90 | 7380 | |||
| 15.6 | 240 | 2.3 | 90 | PC080+NMRV090 | 80A4 | 7054 | |
| 11.7 | 297 | 1.6 | 120 | 7764 | |||
| 9.3 | 355 | 1.3 | 150 | 8180 | |||
| 7.8 | 398 | 1.0 | 180 | 8180 | |||
| 10.0 | 357 | 2.0 | 90 | PC080+NMRV090 | 80B6 | 8174 | |
| 7.5 | 441 | 1.4 | 120 | 8180 | |||
| 6.0 | 516 | 1.1 | 150 | 8180 | |||
| 5.0 | 578 | 0.9 | 180 | 8180 | |||
| 7.8 | 425 | 1.7 | 180 | PC080+NMRV105 | 80A4 | 10320 | |
| 5.8 | 513 | 1.2 | 240 | 10320 | |||
| 4.7 | 597 | 1.0 | 300 | 10320 | |||
| 7.5 | 462 | 2.2 | 120 | PC080+NMRV105 | 80B6 | 10320 | |
| 6.0 | 552 | 1.8 | 150 | 10320 | |||
| 5.0 | 620 | 1.5 | 180 | 10320 | |||
| 3.8 | 756 | 1.0 | 240 | 10320 | |||
| 7.8 | 425 | 1.8 | 180 | PC080+NMRV110 | 80A4 | 10320 | |
| 5.8 | 513 | 1.3 | 240 | 10320 | |||
| 4.7 | 597 | 1.0 | 300 | 10320 | |||
| 7.5 | 462 | 2.6 | 120 | PC080+NMRV110 | 80B6 | 10320 | |
| 6.0 | 552 | 2.0 | 150 | 10320 | |||
| 5.0 | 620 | 1.6 | 180 | 10320 | |||
| 3.8 | 756 | 1.1 | 240 | 10320 | |||
| 3.8 | 756 | 1.6 | 240 | PC080+NMRV130 | 80В6 | 13500 | |
| 3.0 | 858 | 1.3 | 300 | 13500 | |||
| 0,75 | 18.7 | 280 | 0.9 | 75 | PC080+NMRV075 | 80B4 | 6000 |
| 15.6 | 313 | 1.0 | 90 | 6375 | |||
| 15.6 | 327 | 1.7 | 90 | PC080+NMRV090 | 80B4 | 7054 | |
| 11.7 | 405 | 1.2 | 120 | 7764 | |||
| 9.3 | 483 | 0.9 | 150 | 8180 | |||
| 7.8 | 543 | 0.7 | 180 | 8180 | |||
| 11.7 | 430 | 1.9 | 120 | PC080+NMRV105 | 80B4 | 9811 | |
| 9.3 | 506 | 1.6 | 150 | 10320 | |||
| 7.8 | 580 | 1.2 | 180 | 10320 | |||
| 5.8 | 700 | 0.9 | 240 | 10320 | |||
| 12.4 | 393 | 2.8 | 73 | PC090+NMRV105 | 90S6 | 9614 | |
| 9.3 | 508 | 2.0 | 96.8 | 10320 | |||
| 7.4 | 607 | 1.6 | 121 | 10320 | |||
| 6.2 | 682 | 1.3 | 145.2 | PC090+NMRV105 | 90S6 | 10320 | |
| 4.6 | 832 | 0.9 | 193.6 | 10320 | |||
| 11.7 | 430 | 2.2 | 120 | PC080+NMRV110 | 80 В4 | 9811 | |
| 9.3 | 506 | 1.7 | 150 | 10320 | |||
| 7.8 | 580 | 1.3 | 180 | 10320 | |||
| 5.8 | 700 | 0.9 | 240 | 10320 | |||
| 12.4 | 393 | 3.2 | 73 | PC090+NMRV110 | 90S6 | 9614 | |
| 9.3 | 508 | 2.3 | 96.8 | 10320 | |||
| 7.4 | 607 | 1.8 | 121 | 10320 | |||
| 6.2 | 682 | 1.5 | 145.2 | 10320 | |||
| 4.6 | 832 | 1.0 | 193.6 | 10320 | |||
| 5.8 | 712 | 1.4 | 240 | PC080+NMRV130 | 80 В4 | 13500 | |
| 4.7 | 813 | 1.1 | 300 | 13500 | |||
| 12.4 | 399 | 4.4 | 73 | PC090+NMRV130 | 90S6 | 12575 | |
| 9.3 | 508 | 3.2 | 96.8 | 13500 | |||
| 7.4 | 607 | 2.6 | 121 | 13500 | |||
| 6.2 | 682 | 2.1 | 145.2 | 13500 | |||
| 4.6 | 832 | 1.5 | 193.6 | 13500 | |||
| 3.7 | 944 | 1.2 | 242 | 13500 |
